User manual: UFS Explorer RAID Recovery


1. The basics

1.1 Overview

UFS Explorer RAID Recovery was developed to meet even the most challenging requirements of both home users and technical experts who deal with various RAID-related data recovery tasks. Featuring versatile software techniques, the program will restore lost files from a vast variety of storage media in addition to RAID and RAID-based storage units: internal hard disk drives, portable devices, virtual disks as well as various file systems. At the same time, in response to abundant market of operating systems, there are software releases for Windows, Linux and macOS. The application will work with both desktop and mobile, distributed and centralized, real and virtual environments. The utility is intended to produce remarkable recovery performance when handling data loss cases of any complexity – from simple file deletion to data recovery after complete destruction of a file system.

With abundance of tools and functions organized into one efficient software, this application will become an irreplaceable assistant of both home users and specialists in the field data recovery.

1.2 Specifications and requirements

Supported host operating systems:

  • Microsoft Windows ®: starting from Windows ® XP with Service Pack 3 and later;
  • Apple macOS: all versions starting from 10.15;
  • Linux: Debian Linux 6.0 (or compatible) and above.

Minimal configuration:

  • Any of the supported operating systems
  • At least 20 MB of free space on the disk for software executable files
  • At least 1 GB of RAM
  • Linux software version can run from most modern Linux Live CDs

Recommended configuration:

  • 64-bit edition of any of the supported operating systems
  • Over 1 GB of free space on the disk for the program and temporary files
  • At least 4 GB of RAM and CPU with 4 logical cores for parallel data processing
  • Default web browser

Supported host computer architectures:

  • Intel Architecture, 32-bit (IA-32, x86) – for all operating systems;
  • AMD64 (x86-64) – for all operating systems.

Supported file systems for recovery

  • NTFS: full support: data access, search for lost partitions, RAID recovery, deleted files recovery, recovery after format and recovery after file system damage.
  • FAT/FAT32: full support: data access, search for lost partitions, deleted files recovery, recovery after format and recovery after file system damage.
  • SGI XFS: full support: data access, search for lost partitions, RAID recovery, deleted files recovery, recovery after format and recovery after file system damage. Support of NAS devices and custom servers.
  • Apple HFS+: full support: data access, search for lost partitions, RAID recovery, deleted files recovery* and recovery after file system damage.
  • Apple APFS: full support: data access, search for lost partitions, RAID recovery, recovery of deleted files and recovery after file system damage.
  • Linux JFS (JFS2): full support: data access, search for lost partitions, RAID recovery, deleted files recovery, recovery after format and recovery after file system damage.
  • Ext2-Ext4: full support: data access, search for lost partitions, RAID recovery, deleted files recovery*, recovery after file system damage. Support of both NAS and custom servers.
  • ReiserFS: full support: data access, search for lost partitions, RAID recovery, deleted files recovery, recovery after format and recovery after file system damage.
  • UFS/UFS2, Adaptec UFS: data access, search for lost partitions, RAID recovery for both little-endian and big-endian variations. Recovery after file system damage. Very limited support of deleted data recovery.
  • Sun ZFS: data access and support of data recovery from simple and stripe ZPOOL, limited support of lost data recovery. Support of RAID-Z (RAID-Z2, RAID-Z3).
  • HFS: legacy Apple file system supported in data access mode only (copying files and folders from HFS file system).
  • Btrfs: data access and RAID recovery; support of harware RAID, madadm RAID, Btrfs-driven RAID.

RAID support:

  • Supported are most popular standard RAID patterns for RAID 0, RAID 1E, RAID 3, RAID 5, RAID 6, RAID 7, etc.
  • RAID-on-RAID support: RAID 10, RAID 50, RAID 60, RAID 50E, etc.
  • Support of custom RAID layouts via RAID Definition Language or Runtime VIM.
  • Support of Synology HybridRAID.
  • Automatic reconstruction of spanned volumes: mdadm, LVM, Apple Software RAID, Intel Matrix, Windows Dynamic disks, MS Storage Spaces

1.3 Features

  • Effective toolkit for work with RAID of various complexity
  • Instant reconstruction of RAID layout
  • Support of most standard, nested and user-defined RAID patterns
  • Recognition and assembly of spanned volumes
  • Equally efficient data recovery from linear storages
  • Support of a wide range of file systems
  • Possibility to work with disk images and virtual disks
  • Prompt evaluation of the file system state
  • Immediate access to data of consistent file systems
  • Automatic detection and manual definition of lost partitions
  • Filtering of recovery results by custom criteria
  • Saving scan results for further references
  • On-the-spot disk image creation
  • User-friendly interface with helpful tips and prompts

Installation

2.1 Setup

The software download page is located at ufsexplorer.com/ufs-explorer-raid-recovery. This page also contains references to the information about software updates, technical details, including program specifications.

To install a new copy of the software or update the program, you should follow the steps of fresh software installation. In case of an update from an older software version, there is no necessity to remove the older software. Yet, a rollback to the previous software version requires uninstallation of the newer one. Other editions of UFS Explorer can be installed along with UFS Explorer RAID Recovery.

For Windows users

You can install the software on Windows XP with Service Pack 3 and all later versions of the Windows operating system. It is also possible to run the software on older versions of Windows starting from Windows NT 4 with Service Pack 6 while software installation on Windows 95/98/МЕ is not supported at all. To install the software simply download the executable file of the software installer and run it.

Warning: never download or install the software on the drive which contains the lost data you are going to recover. This may lead to its permanent damage or loss. If the data was lost from a non-system partition, it's recommended to download and install the software on the system partition. If the data was lost from the system partition, it's recommended to shut down the computer immediately and boot it using UFS Explorer Backup and Emergency Recovery CD.

Having started the installation process, you will be prompted to choose the language of the user interface which will be used as the language of both the software installer and user manual. If the software is updated from a previous version, the installer will automatically pick previous language preferences. After that, the installer will show you the End User License Agreement (EULA) for acceptance. You will be able to continue the installation procedure only after EULA is accepted. At the next step, the software will prompt for the target folder to which the application will be installed. In case of a software update from a previous version, the folder of the previous software version will be set as the installation folder by default.

Then the installer will prompt for the name of the "Start" menu product group (the default one is "Data Recovery"). At this stage the installer finishes collecting necessary information and starts the installation process. After it is completed, you will be able to run the software from the final window of the software installation wizard. You may also start the software using its shortcut in the "Start" menu ('All programs', then the software group (the default one is "Data Recovery") and then "UFS Explorer RAID Recovery".

For macOS users

Download the compressed DMG-image file from the software web site and open it using Finder. As an option, you may copy the software to the "Programs" folder.

Warning: never download or install the software on the drive which contains the lost data you are going to recover. This may lead to its permanent damage or loss. If the data was lost from a non-system partition, it's recommended to download and install the software on the system partition. If the data was lost from the system partition, it's recommended to shut down the computer immediately and boot it using UFS Explorer Backup and Emergency Recovery CD.

For Linux users

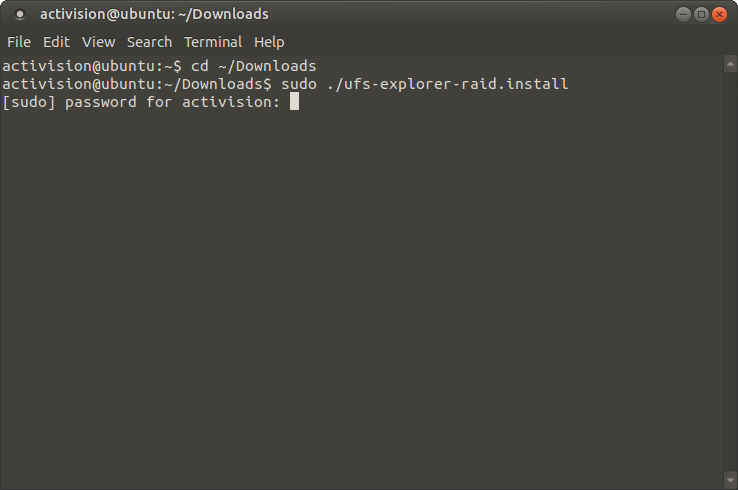

Download the software binary archive from the web site (for example, into the "Downloads" folder) and extract its contents. Open the folder in the Terminal application and open the folder with binaries using the "cd" command (e.g. "cd ~/Downloads"). Run the "install" script as a local Administrator (e.g. "sudo ./*.install" or "su root -c ./*.install", where "*.install" is the name of the installation file – "ufs-explorer-raid.install" for UFS Explorer RAID Recovery).

For Linux users

Warning: never download or install the software on the drive which contains the lost data you are going to recover. This may lead to its permanent damage or loss. If the data was lost from a non-system partition, it's recommended to download and install the software on the system partition. If the data was lost from the system partition, it's recommended to shut down the computer immediately and boot it using UFS Explorer Backup and Emergency Recovery CD.

To start the software, you may use a shortcut in the Window Manager main menu (under "System utilities"). If you are going to run the software as a local administrator, you may type the application

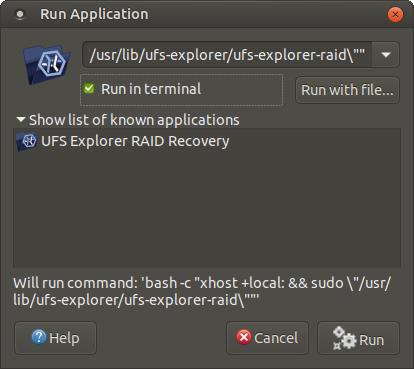

In GNOME:

press Alt+F2 to invoke the "Start application" dialog;

type "bash -c "xhost +local: && sudo \"/usr/lib/ufs-explorer/ufs-explorer-raid\""", enable the "Run in terminal" option and press the "Run" button.

For Linux users

In Terminal:

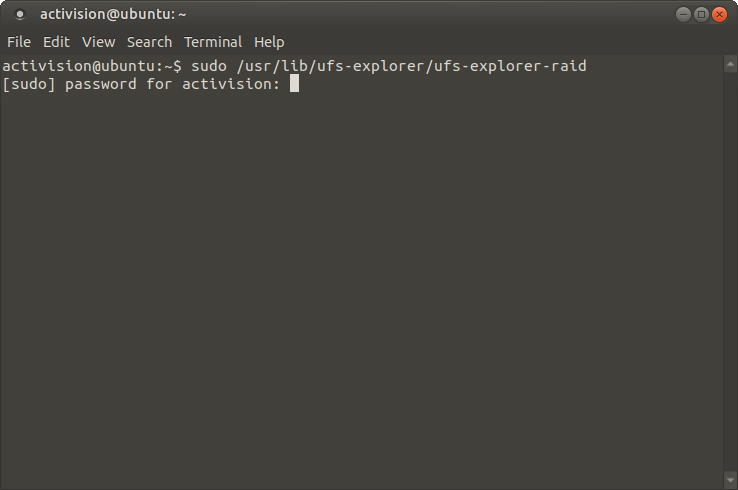

type "sudo /usr/lib/ufs-explorer/ufs-explorer-raid" or "su root -c /usr/lib/ufs-explorer/ufs-explorer-raid"

For Linux users

Read more

2.2 Activation

Activation of the program means purchasing a license for the full software version and its registration. For more information concerning the difference between the trial/evaluation version and the full one, go to the 4.2 Licensing Information section. You can choose between three license types, depending on the purpose of the software employment: Personal, Corporate and Commercial licenses are available, each having special conditions of the product usage. Having purchased a license, you will get a sequence of symbols, which will be sent to the e-mail address provided in the purchase form.

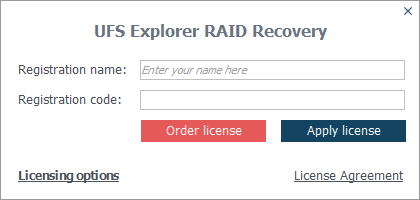

After that, you should run the application (if it hasn't been started yet) and press the "Software Activation and License" button in the upper right corner of the interface.

UFS Explorer RAID Recovery screenshot

Paste the obtained sequence of symbols in the field "Registration Code" and fill in the field "Registration Name" which is to coincide with the name specified as a buyer in the payment document.

When the valid data is supplied, the software should switch to the "Registered" mode and immediately remove the trial limitations.

If you have problems with software activation:

  • make sure you are using the correct software version and edition;
  • make sure that the operating system platform is valid for registration (different OS platforms require different software licenses);
  • make sure the registration code is copied as described above.

2.3 Updates

The program itself may notify you about the availability of an updated version, which will be downloaded and installed after you press the "Install" button. You may also go to sysdevlabs.com/store, download the upgraded installation package of the needed software and simply run it as described in the Setup section. You will not need to enter the registration code again, if you have one, as the application remembers it. In case your software version is up-to-date, the installation manager will show the corresponding message.

2.4 Uninstallation

In case the software is no longer needed and you are willing to uninstall it, follow the steps described below.

2.4.1 For Windows

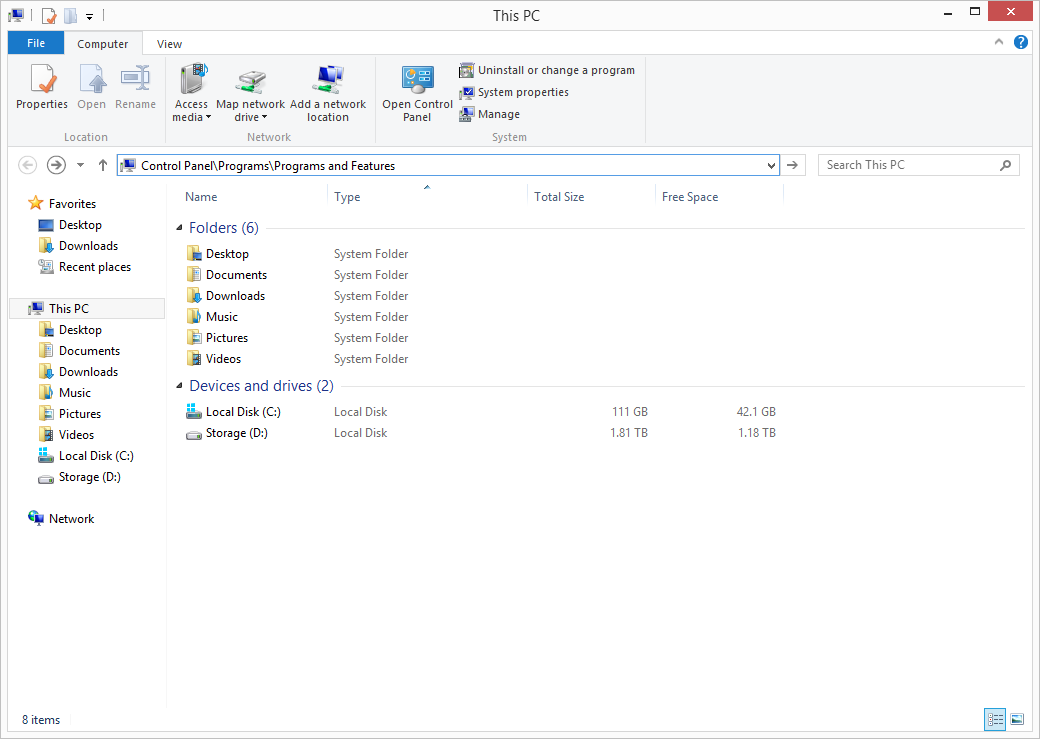

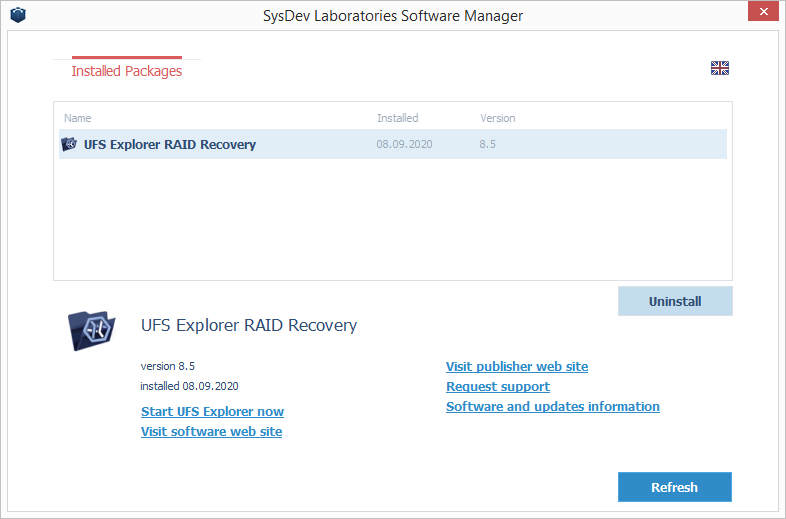

Windows users can remove the software with the help of the standard "Uninstall" feature. For this open the Control Panel, go to the "Programs" category and select "Programs and Features". Alternatively, you can open Explorer and enter "Control Panel\Programs\Programs and Features" in the address bar. The name of the software for removal is "UFS Explorer RAID Recovery".

Uninstallation

Still another way to uninstall the software is using "Software Packages management". To launch it open the "Start" menu, go to "All programs" and choose the software group (the default one is "SysDev Laboratories"). Run the utility using its shortcut and uninstall the needed application.

Uninstallation

2.4.2 For macOS

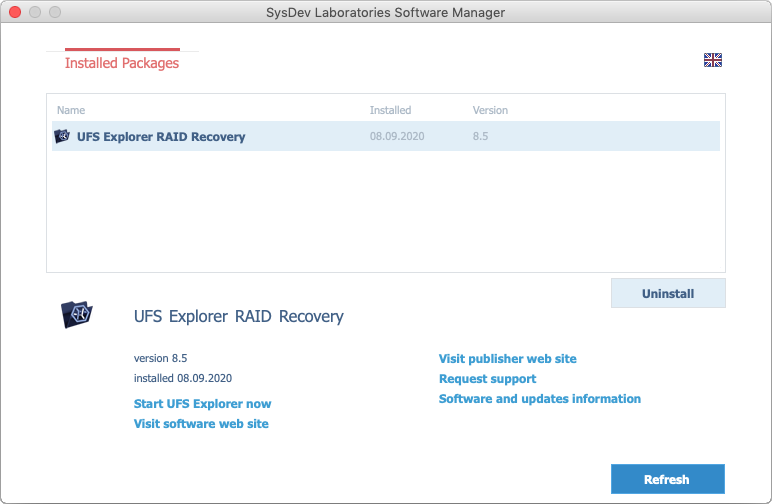

The users of macOS can delete the software using "SDL Software Manager". To launch it open Finder, go to the "Applications" folder (the "⇧Shift + ⌘ Cmd + A" hotkeys) and find "SDL Software Manager". Run the utility and uninstall the needed application.

Uninstallation

Another way to uninstall the software is to open Finder, find it in the "Applications" folder and drag it to the Trash or select the "Move to trash" option.

2.4.3 For Linux

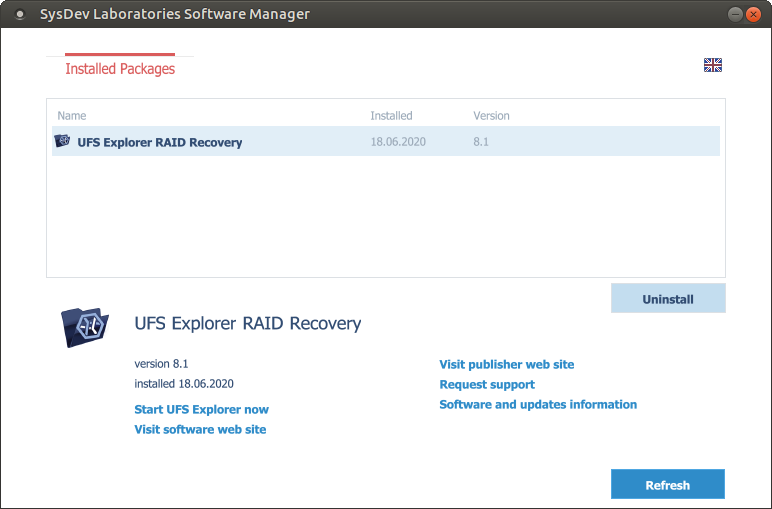

Linux users can remove the software with the help the SDL Software Manager. Simply run the utility as an administrator and uninstall the needed application.

Uninstallation

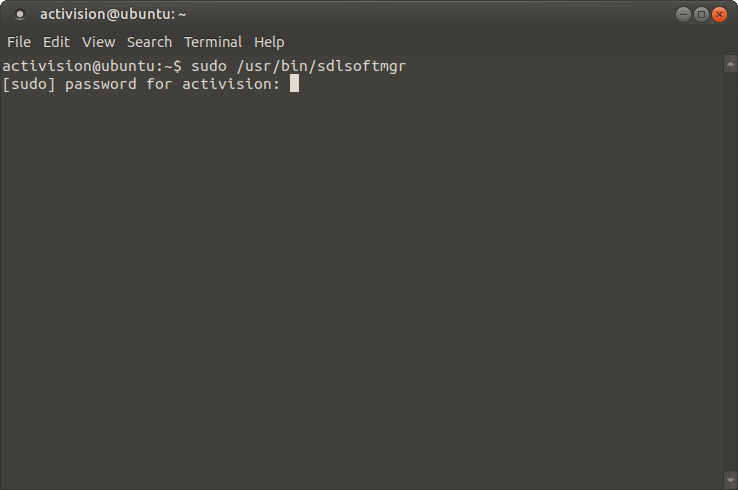

To do this open the Terminal and type "sudo /usr/bin/sdlsoftmgr" or "su root -c /usr/bin/sdlsoftmgr").

Uninstallation

3. Use of UFS Explorer RAID Recovery

3.1 Introduction

As has already been mentioned in sections 1.1 Overview and 1.3 Features, this application is an effective data recovery instrument intended to be utilized by both home users and specialists in this field to restore files lost from RAID and other devices due accidental deletion, formatting, file system damage after hardware or software failures, etc. In this section the peculiarities of software usage are described and illustrated with examples. If you have questions concerning the implementation of certain procedures, please refer to the Appendix section to check whether the question has already been answered there.

3.2 Software settings

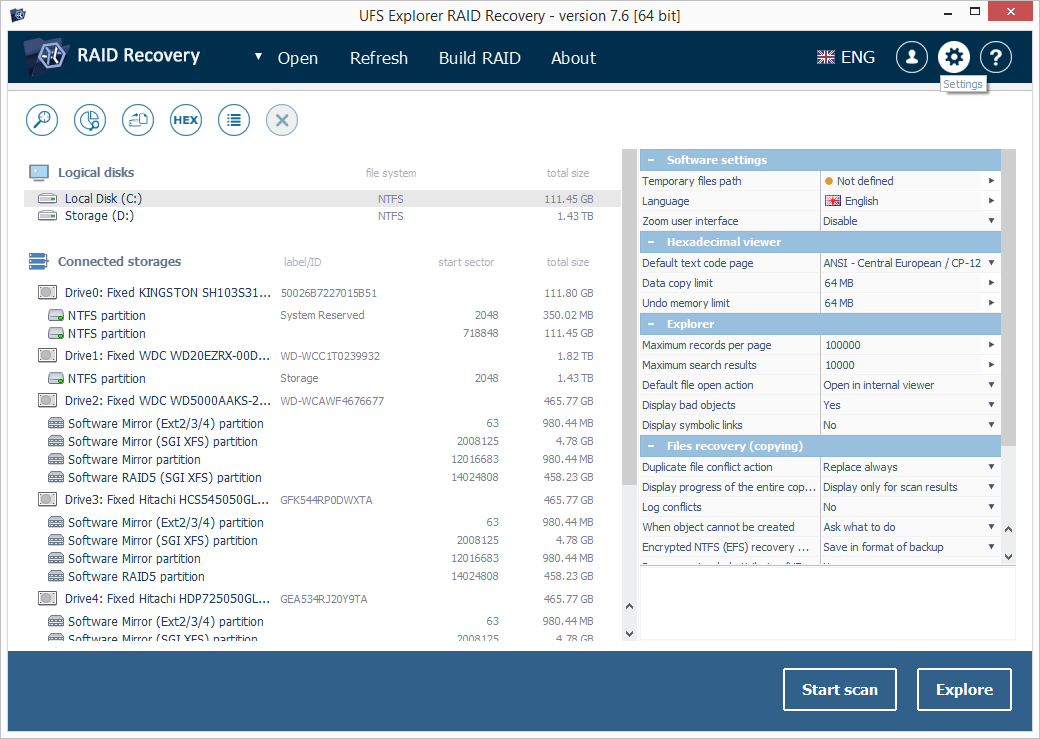

Right after its launch, the program is ready for use with the most optimal default settings. However, the user can modify these settings for more efficient software utilization in the "Settings" pane opened with the "Settings" button in the upper right corner of the interface.

UFS Explorer RAID Recovery screenshot

Each value can be changed by pressing the "Change value" button next to it. All the defined settings will be stored in the corresponding user profile folder in a special "ufsx" file. The software will not save any data to the operating system registry or configuration files (except uninstallation information, if applicable).

3.2.1 Temporary files path

This setting defines the target folder for the "View" tool of Explorer. The software will save all temporary files to this folder. More information can be found in the description of Explorer. The changes will be applied immediately.

3.2.2 Language

This setting allows changing the language of the user interface. For the change to take effect, the software should be restarted.

3.2.3. Zoom user interface

This setting allows increasing the scale of the user interface in order to adapt it to high-resolution screens. For the change to take effect, the software should be restarted.

3.2.4. Hexadecimal viewer

The settings included into this section define the default encoding in which symbolic byte representation in Hexadecimal Viewer is displayed and the maximum number of bytes copied via the system clipboard.

3.2.5 Explorer

The settings avaliable in this section establish the maximum number of objects presented on a single "page" of Explorer and the maximum number of search results returned by a single search operation. Lower values will save memory and increase speed while higher values will allow manipulating more objects. The recommended values can be found in the hint section: to see them, select the header of the corresponding field. The changes will be applied to all the subsequent related operations. In addition, it is possible to set up the default action for the "View" tool: the actions include opening in the internal viewer or copying the file to the temporary files folder and launching it using the default associated application.

3.2.6 Files recovery (copying)

This section contains all the necessary settings related to the process of copying recovered files: the default action taken in case of presence of duplicate files, whether such conflicts will be logged by the software, whether the progress of the process of copying files is displayed, what will be done if a file or folder cannot be created at the specified target location and whether extended attributes will be recovered (for HFS+).

3.2.7 RAID defaults

This section includes settings in regard to reading and assembly of RAID sets: whether the software will detect attached RAID and try assembling known configurations automatically, update incomplete RAID when the missing constituent is detected or attempt to read RAID asynchronously when it is possible.

3.3 Operations

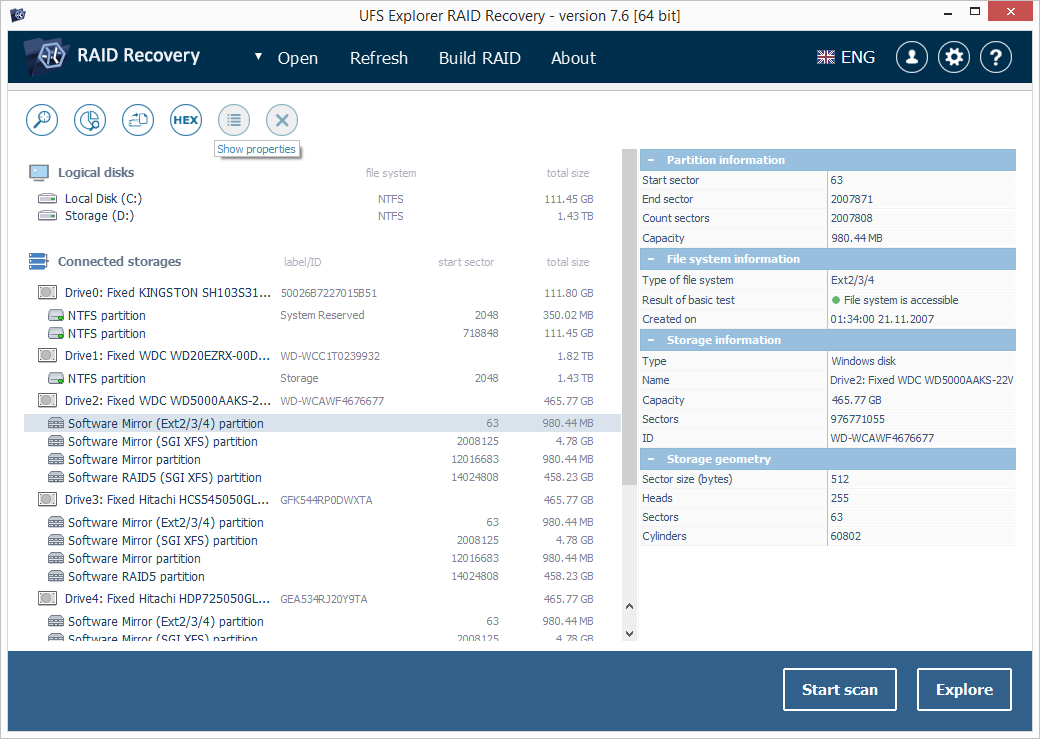

On startup the main window of the program is displayed, which includes the main menu (found near the top), the storages navigation tree (a pane on the left side of the interface) and the workspace (main program area positioned to the right). By default, the workspace will show the "Storage properties" pane which includes various information about the connected storages: for physical disks – type, name, capacity, number of sectors, ID, storage geometry, for logical disks – start/end, number of sectors, capacity and various file system properties and extra recognized technologies in addition to the above mentioned information about the physical storage it belongs to. This pane may also be opened with the help of the "Show properties" tool from the toolbar above the navigation tree or the storage context menu option.

UFS Explorer RAID Recovery screenshot

To get access to the content of a storage, activate the required disk partition in the storages navigation tree or choose the "Explore content of this partition" in its context menu. Using explorer-style navigation you may navigate to a specific folder, find and select the required files using the "Define selection" tool and save them using the "Save (recover) selection" tool from the toolbar or using the "Save this object" context menu option for each of the files/folders.

Any file can be also "opened" after its activation with a keyboard or mouse. This will either copy the file to the folder defined as "Temporary files path" and opened with the installed associated program or opened in the internal viewer depending on the preferences specified in the software settings.

The tree includes two major containers: "Logical disks" which holds all available logical volumes and "Connected storages" which lists all connected physical devices, disk images, RAID storages and spanned volumes.

Storages operations

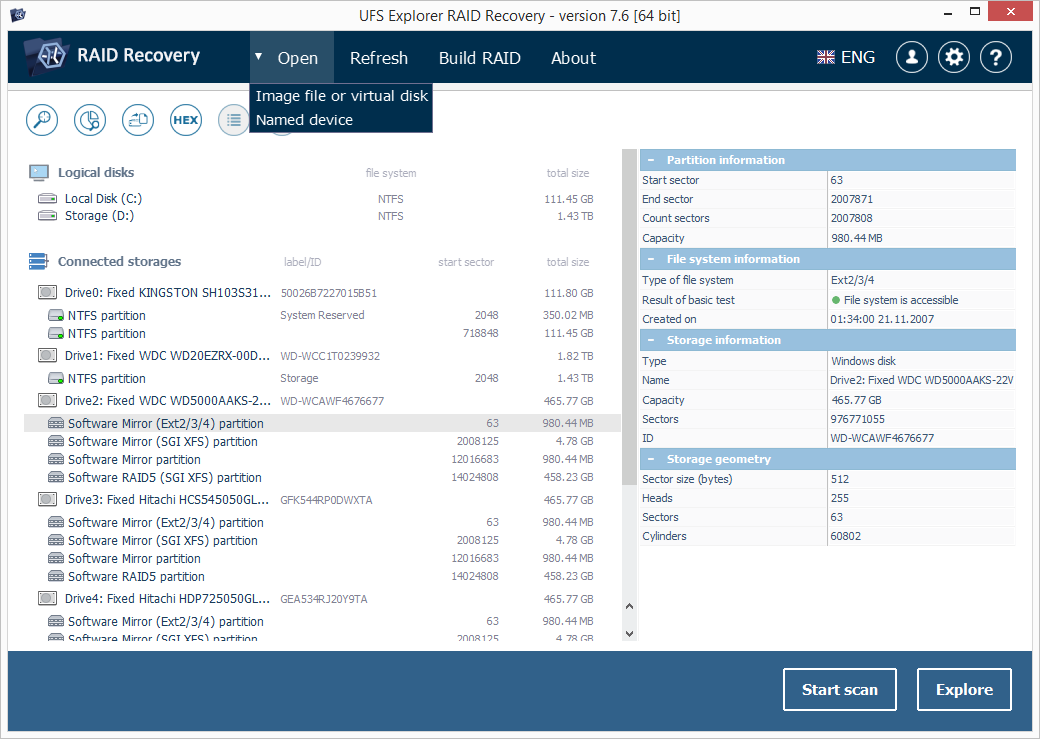

The "Open" item in the main menu contains two subitems, using which you can manually open a disk image or virtual disk or a block device by specifying its full path.

UFS Explorer RAID Recovery screenshot

The "Image file or virtual disk" subitem allows opening any supported disk image or virtual disk file. In addition, it can also be used to open a previously saved RAID configuration and Runtime Software Virtual Image files (*.vim-files).

The "Named device" subitem allows opening a physical storage by specifying its OS-specific device name. In Microsoft Windows, you may open a volume by supplying its mount point (e.g. "E:"). To access physical drives you have to run the software as a local administrator.


The storages opened in UFS Explorer can be closed and removed from the list with the help of the "Close storage" tool from the toolbar above the storages navigation tree or the "Close this storage" option from the storage context menu.

The "Refresh" item from the main menu resets the tree of attached storages: the list of attached storages gets updated and will include all detected storages, even the ones which have been previously closed (except for closed disk images and manually assembled RAID).

In case OS used software RAID, it will be displayed as a set of its components. To open such RAID use the "Named device" subitem of the "Open" menu item the and open the RAID by specifying the device name or mount point (such as "E:" under Windows or "/dev/lvm/vg0" under Linux).

The contextual tool bar for the disk contains tools for the search of lost data, loading saved scan result, definition of lost partitions and allows saving the content of a disk to an image file or view its hexadecimal content.

Disk partitions

A single physical disk may be divided into several partitions. The purpose of this subdivision is data isolation (from other data or OS), installation of different operating systems on the same physical drive, etc.

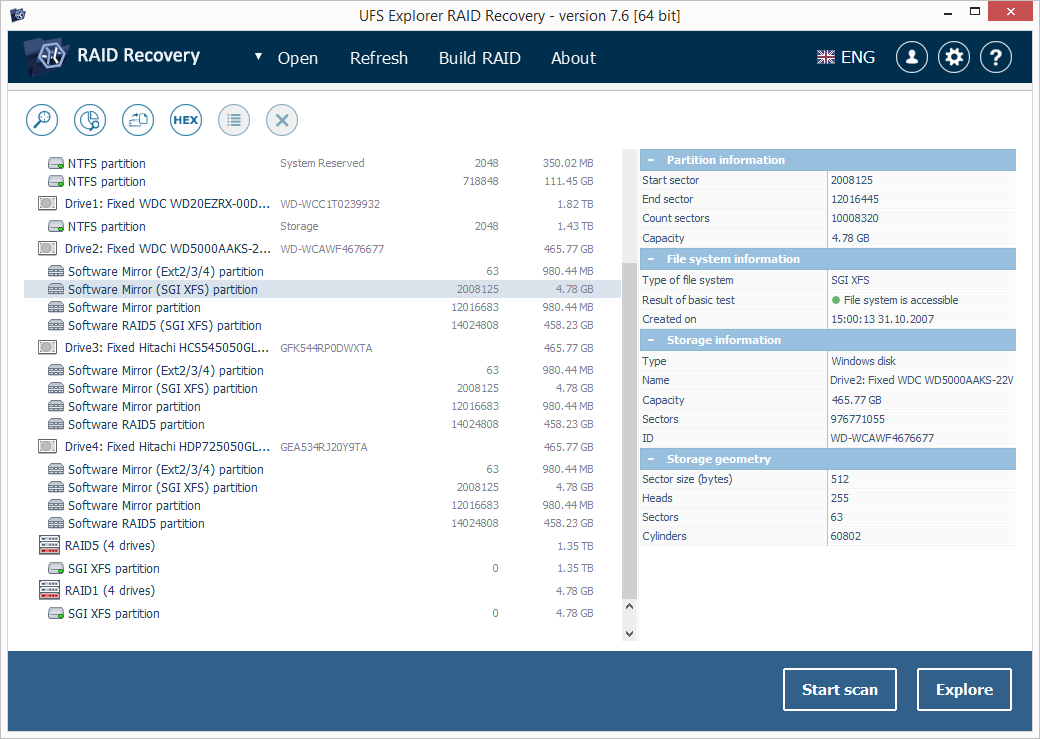

The software will show disk partitions under the corresponding "drive" element (including those with unknown or unsupported file systems). The name of a partition reflects the type of a file system applied on it or the implemented storage technology. The start sector and the total size are specified next to each disk partition. More details about a partition can be found in the storage properties tab.

UFS Explorer RAID Recovery screenshot

The file system icon will indicate its condition: a green icon means the file system can be accessed, the yellow one may signal problems, the red one states that there are problems and the gray one means the file system cannot be recognized. The padlock icon means that the volume is encrypted while the applied extra storage technologies also have their special icons.

The software does not display any information about the mount point of the file system. For example, drive "C:" may be displayed simply as an NTFS partition of a particular size.

A volume can be identified by the disk it belongs to, size, type or file system as well as by its files/folders content.

After a partition is activated, the software opens its file system in Explorer.

Creating a disk image

If a disk seems to have defects, it's strongly recommended to create its image and carry out further data recovery using this disk image file.

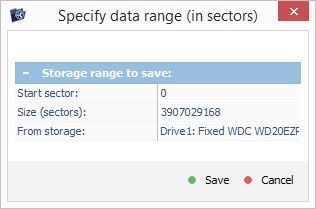

UFS Explorer allows creating a bit-to-bit disk image file of a storage using a special tool from the toolbar located above the storages navigation tree or the context menu option. For this select the needed disk and choose the "Backup data" tool or left-click on the storage and choose the "Save contents to image file" context menu option. The tool makes it possible to save a partial disk image by defining a data range in sectors.

A partial disk image can also be created with the help of Hexadecimal Viewer. For this choose the "Hexadecimal contents" context menu option (or the "View storage contents in hexadecimal viewer" tool from the toolbar), select a specific storage range, press the "Save as" button and when prompted, choose to save "current selection only".

UFS Explorer RAID Recovery screenshot

The created disk image files may be opened in the software using the "Image file or virtual disk" subitem from the "Open" menu item and be used for data recovery instead of the original disk.

Defining missing partitions

The software allows defining a missing partition both manually and by automated scan. To open a "Partitions" window for any physical disk, simply double-click this disk or select it and choose the "Manage storage partitions or regions" tool from the toolbar above the storages navigation tree. The tools for work with partitions will be available in the panel at the top of the opened window.

The "Partitions" window is synchronized with the "Hexadecimal Viewer" element: when a new partition defined by default is analyzed, the current position in Hexadecimal Viewer is used; when a disk partition is selected, Hexadecimal Viewer will navigate to the partition start location on the disk.

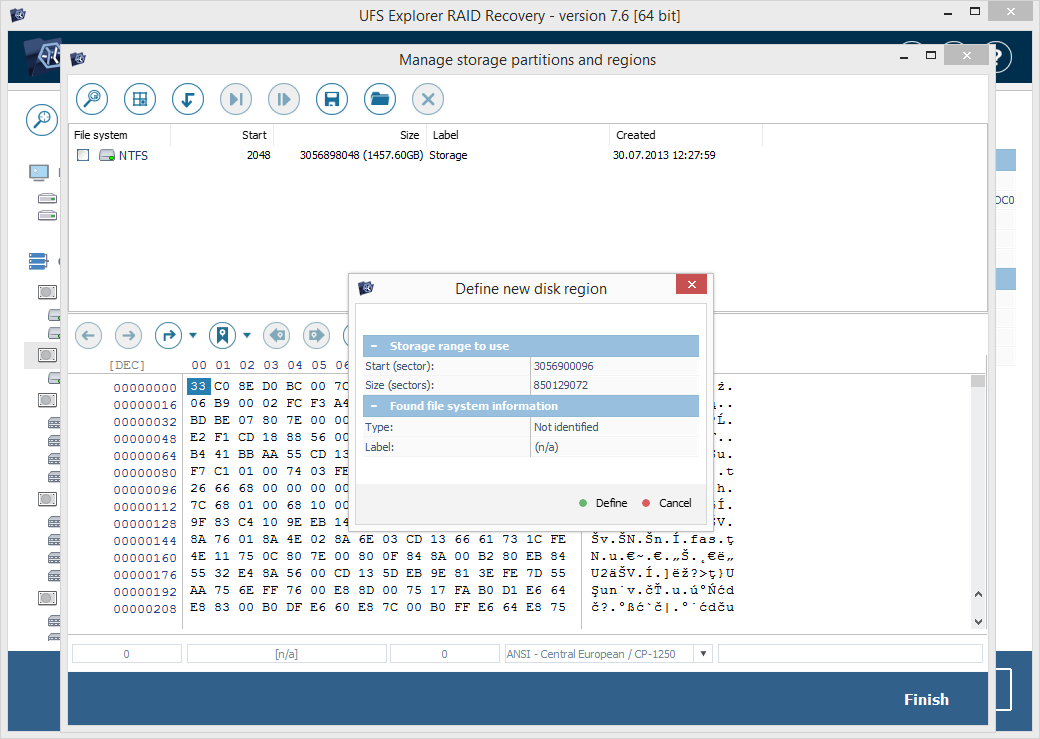

To define a partition manually use the "Define region manually by specifying range" tool from the toolbar. Prior to that you may find the partition in Hexadecimal Viewer; in this case the software may detect partition parameters (such as start, size, file system type) automatically, if this information can be recognized by the software.

UFS Explorer RAID Recovery screenshot

Automated search for lost partitions is available through the "Search undetected partitions by metadata" tool. If you have started a new scan, you should specify a disk range to be analyzed and the file system types to scan for.

When a file system of the given type is detected, the software adds it to the list of found partitions. The color of the icon will indicate the information about the partition state.

The list of partitions can be saved to the disk and restored later using the "Save list to a file"/"Load list from a file" tools. It's recommended to save the list of partitions after successful scan to avoid repeated scan after software restart.

To add partitions to the storages navigation tree of UFS Explorer you must select the needed ones using checkboxes and press "Finish".

Important: The information about the partitions which were not selected with checkboxes will be lost if you have not saved the list of partitions to a file.

3.3.2 Using Explorer

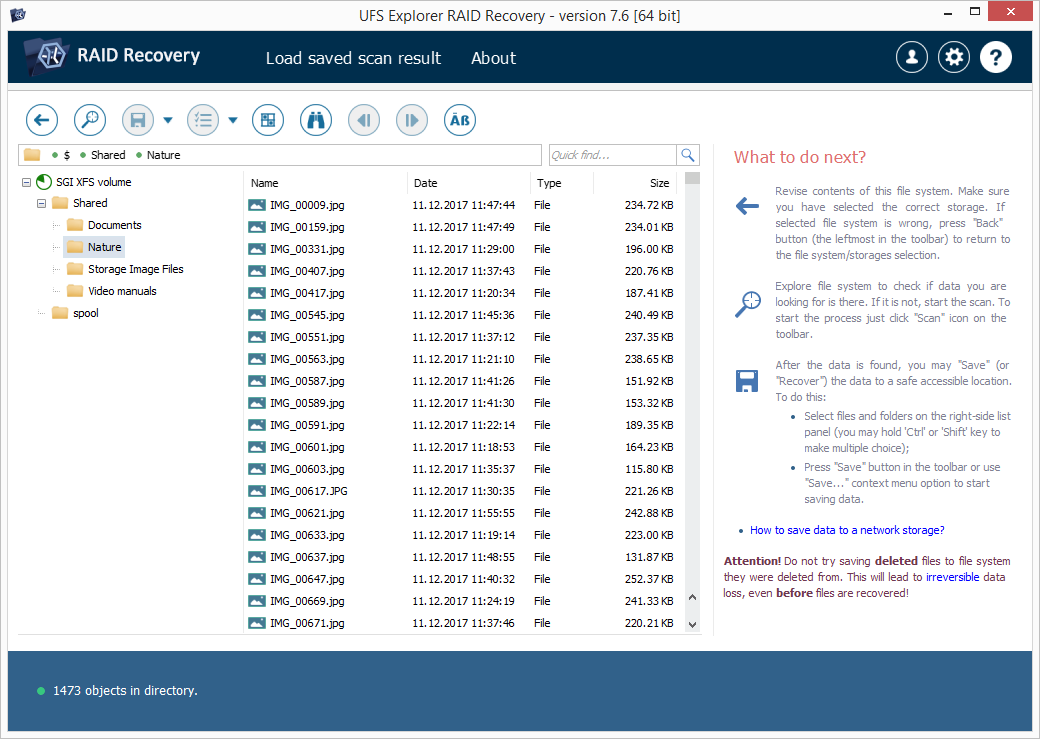

Explorer can be opened for a disk partition by double-click on it, using the "Explore" button in the lower right corner of the main window or with the help of the "Explore content of this partition" storage context menu option.

UFS Explorer RAID Recovery screenshot

Files and folders are represented in Explorer as sorted lists, containing file/folder name, type, size and modification date. You may re-sort the list by clicking on the column header.

To simplify navigation Explorer contains a quick navigation panel with the support of navigation by navigation history, navigation to parent folders or by using a full path.

The left side of the "Explorer" pane contains a tree of folders. When a folder is activated, the software navigates to this folder. When a file is activated, the software will either open it in the embedded viewer or copy it to the folder for temporary files and open it with the help of the installed associated application, depending on the preferences specified in the software settings.

You can save files and folders to a specific "local" folder by selecting them and choosing the context menu option "Save this object". To copy all data from a folder you may apply the copy operation for the parent folder.

Several objects in Explorer can be selected for copying by holding the "Shift" or "Ctrl" keys when selecting an object in the list.

If you need a more complex rule for copying files, use a "bulk copy" operation.

Explorer pages

If the number of files and folders exceeds the maximum number specified in the software settings, Explorer will use "Pages" to show all files. In this case, the "Previous page" and "Next page" buttons become activated in the toolbar and can be used for navigation.

Bulk copying

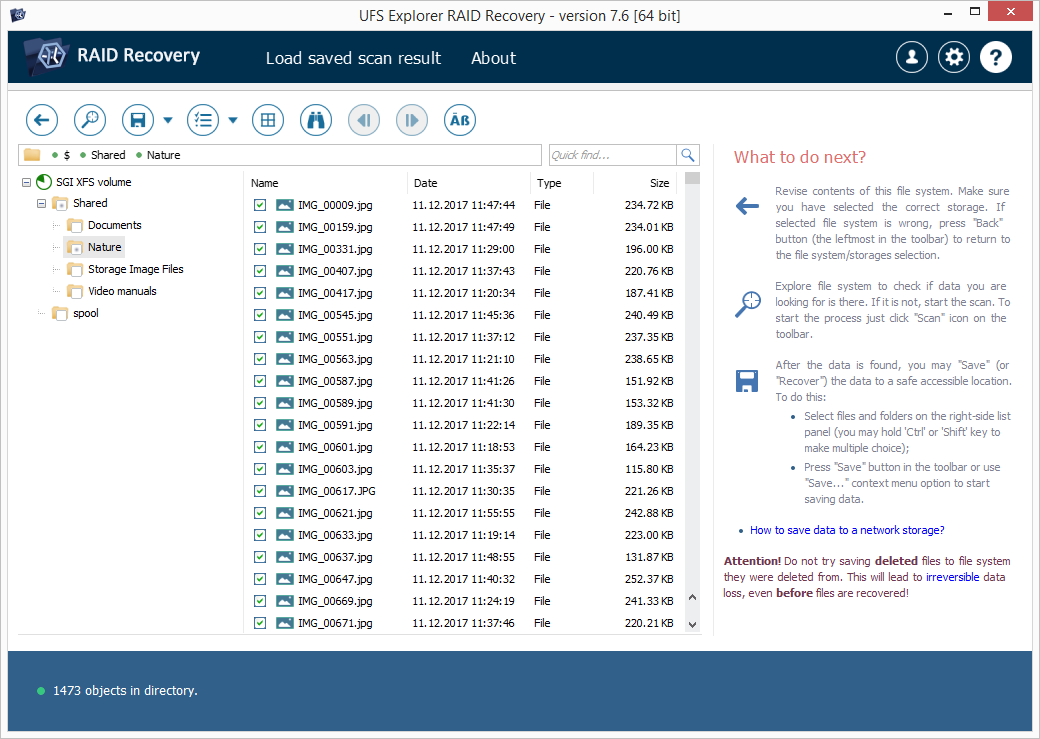

The option is activated by the "Define selection" button in the Explorer toolbar. This turns both the list of files and the tree of folders to to the "checkbox mode" so that you could select files and folders for copying.

UFS Explorer RAID Recovery screenshot

The copying rule is defined as:

  • a file or folder selected with a checkbox will be copied;
  • if a checkbox was removed from a file of folder, it will not be copied;
  • if a folder is selected, it will be copied with its content except for deselected files and folders.

Having selected all the required files/folders, press the "Save (recover) selection" button to start the copying process. The selection can be canceled with the help of the "Cancel selection" button.

Search for files and folders

The function is available as the "Quick find" field: just specify a sub-string of the file name in the search field. You may also use advanced search: the "Search for files and folders" tool in the Explorer toolbar, the "Find in this folder" folder context menu or the "Ctrl+F" keys combination.

Quick search uses a string as a part of the file name and uses case sensitivity settings of the current file system.

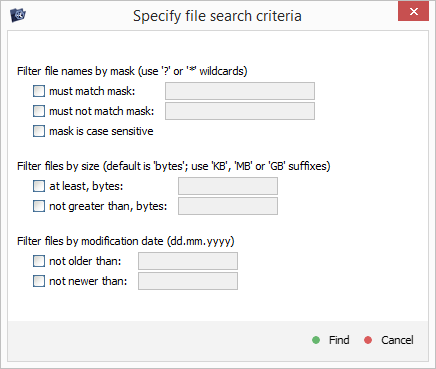

For advanced search, you may specify a full mask for the file name (including the "wildcard" symbols * and ?). You may also define a rule for the file size and for inclusion of files and folders to the search result.

UFS Explorer RAID Recovery screenshot

The search operation will run over all sub-folders of the selected folder until all sub-folders are processed or the maximum number of found objects is reached.

Data size

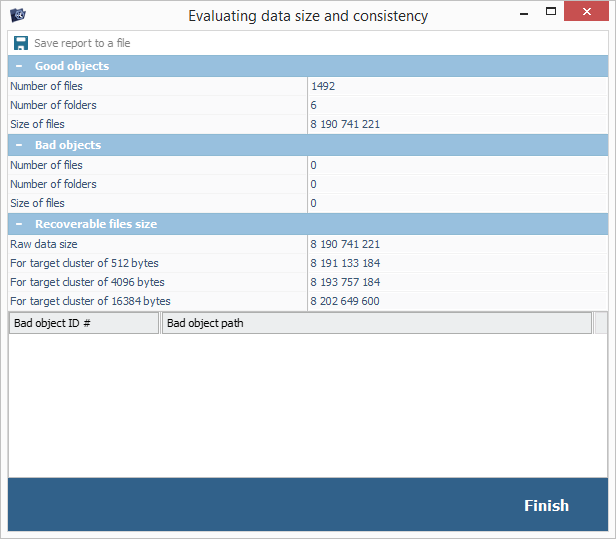

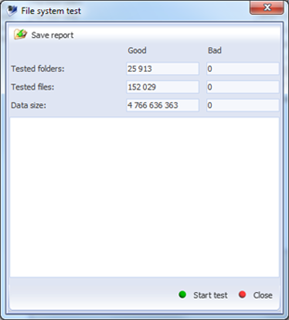

Before starting copying files and folders, it's recommended to evaluate whether the size of selected data matches the amount of free space available on the target storage. You may use the "Evaluate size and test" tool from the Explorer toolbar or the same option presented in the folder or objects group context menu.

UFS Explorer RAID Recovery screenshot

The tool allows both evaluating the size of data and testing file system consistency. If a file system consistency error is detected, it's recommended to continue with file system recovery.

Folders tree panel

The panel contains the information about the currently opened partition, file system and folder for fast navigation. If a folder is chosen in the left panel, it will be opened in Explorer; this feature can be used for fast navigation through different folders.

The folder context menu contains all the tools available in Explorer for the folder record. If Explorer is in the "bulk copy" mode, you may select/deselect folders from the tree by double-clicking them.

3.3.3 Recovery of lost files

Search for lost file systems was described in the section Defining missing partitions. This section describes recovery of lost and deleted files (including recovery of user-deleted files, recovery after format, file system damage, etc.).

Recovery of lost files is available as the "Start scan" button in the lower right corner of the main window, "Scan this stoarge (find lost data)" tool in the toolbar above the storages navigation tree, the "Scan this file system for lost data" button in the Explorer toolbar as well as the "Scan for lost data" option in the partition context menu.

Recovery process

Search for lost data in UFS Explorer consists of two parts: definition of scan parameters and the scanning process itself. The parameters for scan are specified in three major steps:

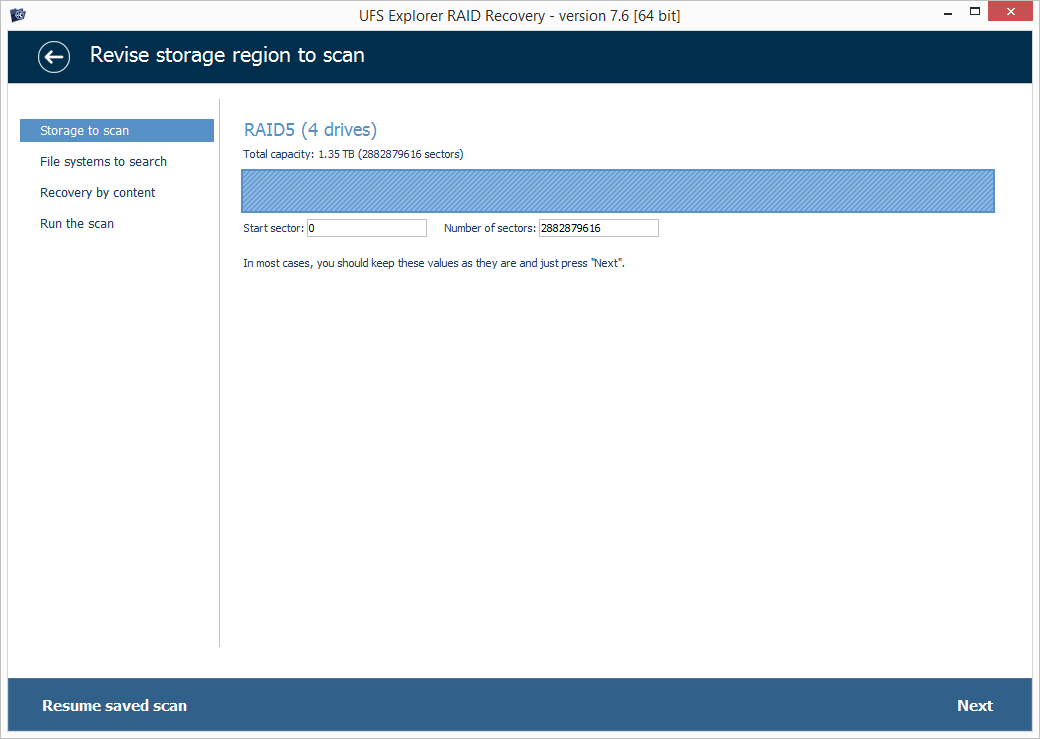

- storage region to be scanned (in most cases you should keep the default values);

UFS Explorer RAID Recovery screenshot

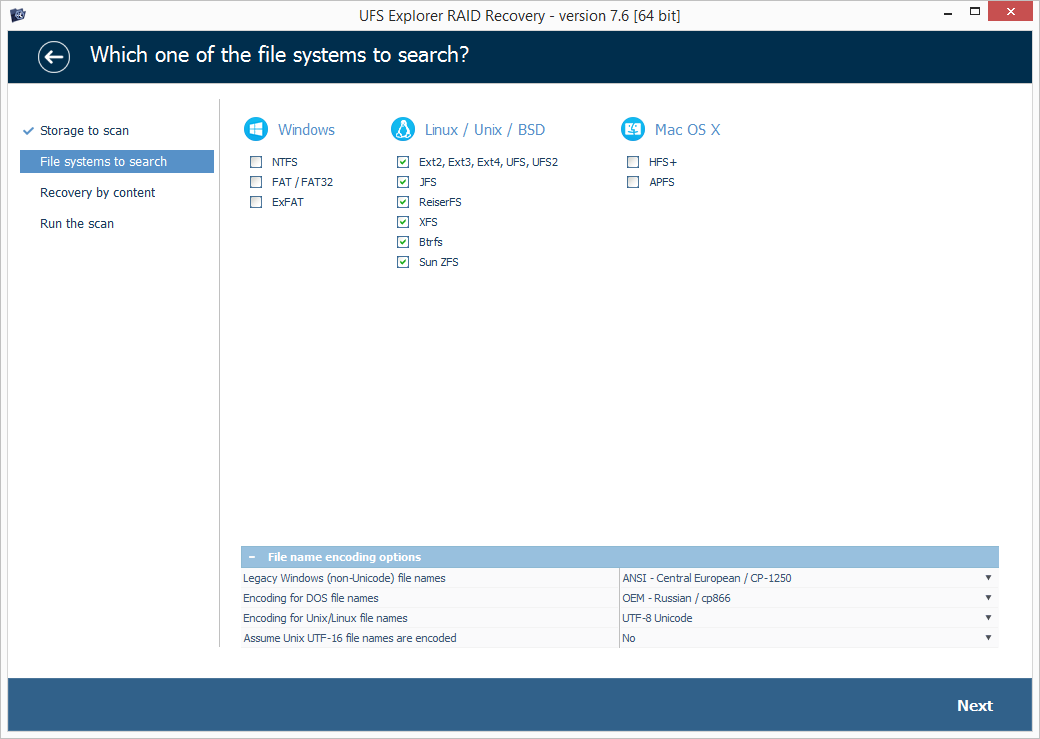

- file system types to search for and file name encoding options;

UFS Explorer RAID Recovery screenshot

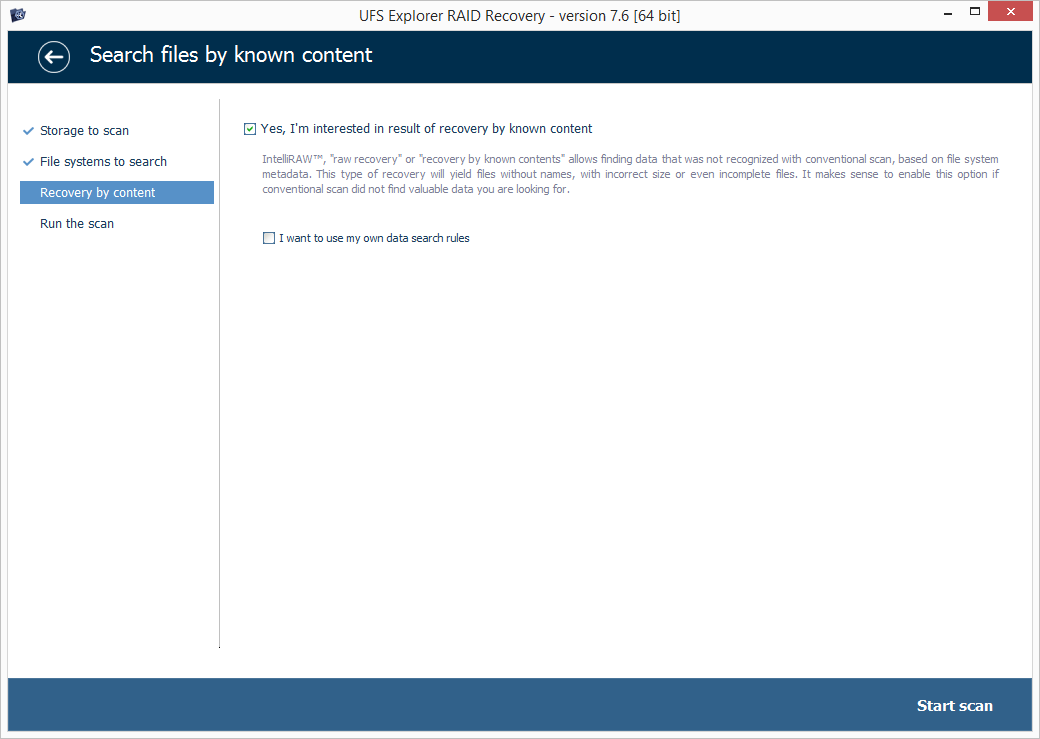

- IntelliRAW management.

UFS Explorer RAID Recovery screenshot

Having configured the necessary parameters, press the "Start scan button" in the lower right corner.

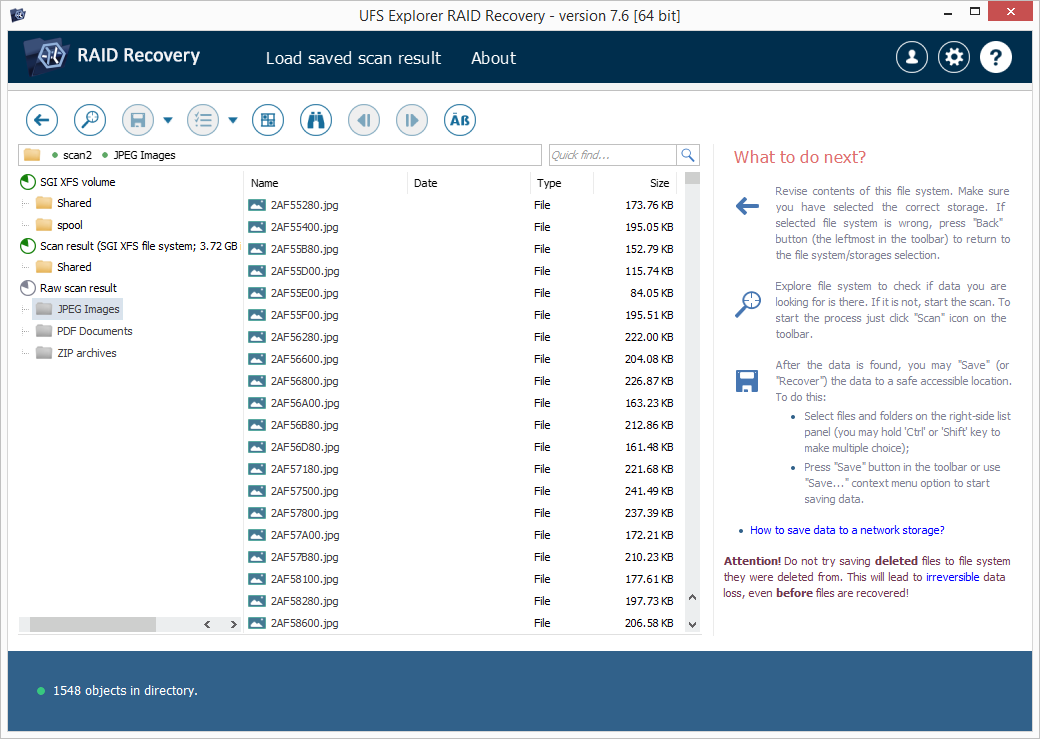

The scan may take a considerable amount of time. After it is completed, the software will open Explorer and show the scan result as a new "Scan result" instance opened by default with the information about the type of the scanned file system, its size and its own folders sub-tree in the left-hand pane. The pane will also contain the currently opened partition and its folders for fast navigation. If any folder is chosen in the left pane, it will be opened in Explorer; this feature can be used for fast navigation between different folders.

UFS Explorer RAID Recovery screenshot

The folder context menu contains all the tools available in Explorer for folder record. If Explorer is in the "bulk copy" mode, you may select/deselect folders from the tree by double-clicking them.

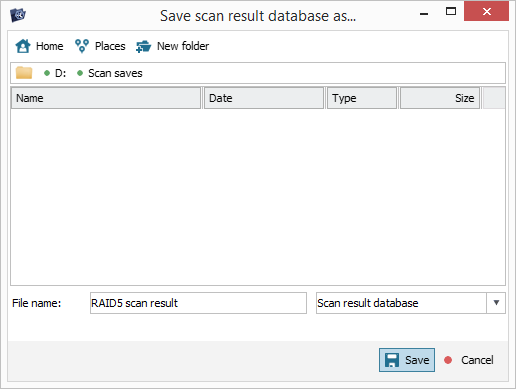

Saving a scan result project

To prevent the loss of scan results caused by software or hardware failures, it's strongly recommended to save them to a project file. This way you won't need to scan the storage once again which could make difference for large and slow storages. The tool "Save scan result database" is available in the Scan result item context menu, and this action will also be suggested by the software just after the scan is completed.

UFS Explorer RAID Recovery screenshot

If you need to resume recovery after software restart, you will be able to simply load the scan result. This option is available from partition context menu as "Load saved scan result" and as the "Load saved scan result" menu option in Explorer.

UFS Explorer RAID Recovery also allows pausing storage scan, saving it as a scan status database and resuming it later. To pause the scan press the "Pause scan" button in the lower left corner of the workspace and save it with the help of the "Save current state" button. To resume this scan, press the "Resume saved scan" at the bottom left of the "Storage to scan" scan settings tab.

Saving recovered files

You can browse and copy files from the scan result just like those of an original file system. This means the required files and folders can be saved using the same tools available in Explorer.

Important: never save the files you've recovered to the source storage. The file data (contents) is still being read from the source drive and the software may overwrite them. Use a separate storage for copying the recovered data.

3.3.4 RAID

UFS Explorer RAID Recovery fully implements all RAID recovery related functions, they do not require any prior activation and are also available in the trial version.

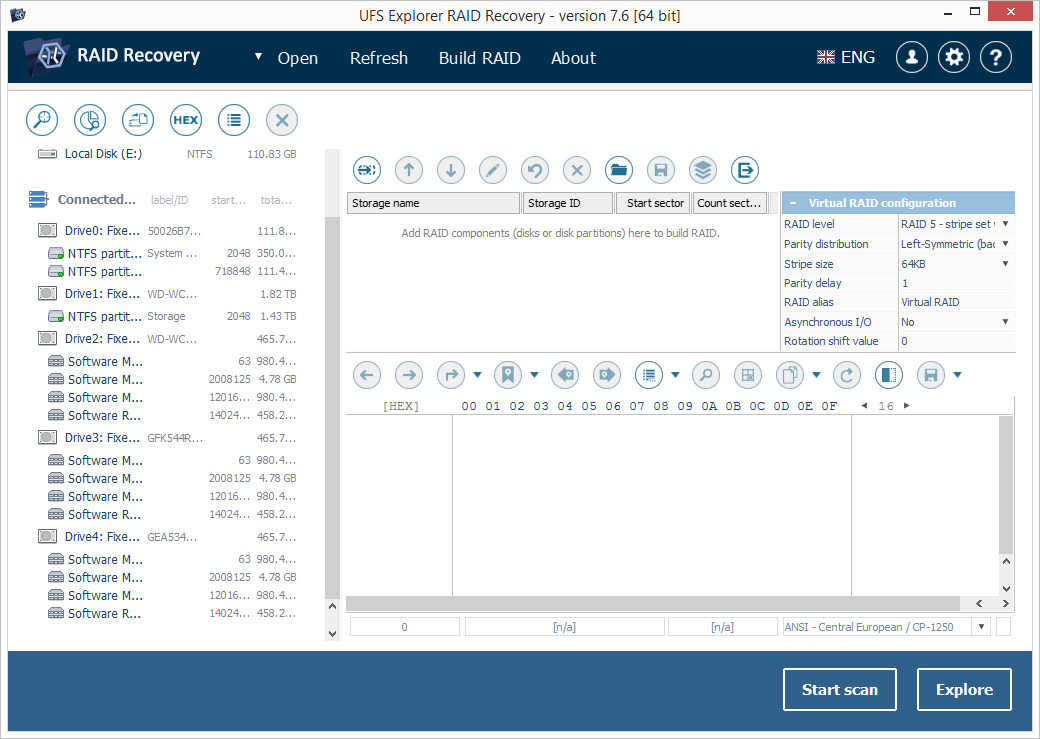

A special tool for work with RAID is available in the main menu at the top of the main window as "Build RAID".

The RAID Builder pane contains a toolbar, a list of RAID components and a sheet with RAID properties. The bottom of the pane presents the "Quick analysis" panel implemented as a context-dependent Hexadecimal Viewer.

Building RAID

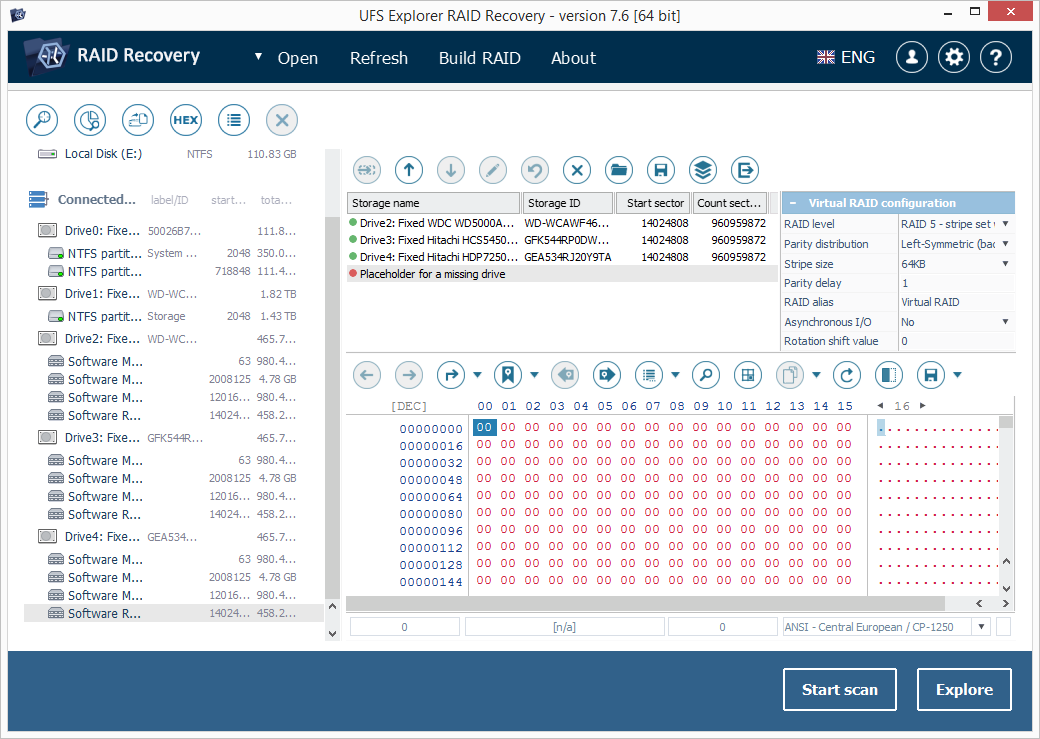

UFS Explorer allows assembling any RAID configuration in the virtual mode for subsequent data access or recovery. To build RAID you should add all its components to the components list, set up RAID parameters and press the "Build this RAID" button from the toolbar.

UFS Explorer RAID Recovery screenshot

The assembled virtual RAID will appear among the connected storages in UFS Explorer. Reconstruction without a single drive is supported for RAID5 and even without two drives – for RAID6. Still, a virtual disk placeholder should be added instead of the missing constituent, so that RAID could be built correctly. For this use the "Add placeholder to indicate missing disk" button from the RAID Builder toolbar.

UFS Explorer RAID Recovery screenshot

Note: An incorrect virtual RAID configuration assembled in UFS Explorer has no impact on the "real" RAID configuration, still, data recovery from such RAID is impossible. For successfull accomplishment of data recovery, you have to build RAID correctly. You may perform any number of RAID reconstruction attempts because UFS Explorer does not modify data on the source disks.

Adding RAID component

All opened disks or disk images available in the left pane of the main window can be used as RAID components. When RAID Builder is opened, the default behavior of the the storages navigation tree changes: activation of an item adds it to RAID as its component instead of opening the storage in Explorer. This also adds a new option "Add to RAID" to the disk or disk partition context menu. If you have added a wrong component, select it in the list and press the "Remove selected component" button in the RAID Builder toolbar.

To add a placeholder for a missing drive (only for degraded RAID5 or RAID6) press the "Add placeholder to indicate missing disk" button.

And finally, to edit the order of storage components, you may select an item and use the "Move component up"/"Move component down" buttons to set the correct ordinal position for the selected component.

If a storage component has an incorrect size or you need to adjust the start position, use the "Edit component range" context menu option.

RAID parameters

You may use any source materials to find the correct RAID components (RAID board BIOS information, configuration files, on-disk structures, etc.). Anyway, you should specify the correct RAID parameters to recover intact data.

Different RAID levels use various settings. The properties sheet of RAID Builder adapts to the selected RAID level and allows specifying only the required RAID parameters.

For RAID6 there are additional parameters (related to the redundancy algorithm and distribution) and they should be specified only in case RAID is reconstructed with missing (failed) drives.

Contextual data analysis

On-disk data of the selected component is displayed at the bottom of the "Hexadecimal Viewer" panel. This allows quickly analyzing the on-disk content and visually confirm the order of disks. Switching a component makes the software show the content of another component on the same position; Hexadecimal Viewer is also configured to allow for "tabulation jumps" of the size of a stripe specified for RAID.

Automated RAID reconstruction

Some RAID configurations can be recognized and assembled by the software in the automatic mode. If any of good components of such RAID is added, the software suggests building RAID automatically.

On success, the software loads RAID components in the right order and the full set of RAID properties.

In case of failure (e.g. in case of RAID configuration damage) you may cancel automatic RAID reconstruction and build RAID manually.

Result

In case of successful RAID reconstruction the array will be added as a new storage in the storages navigation tree. You may apply all the operations available for other storage types (including adding RAID as a component of another RAID) to this RAID.

Saving RAID

RAID Builder has quick preview tool for RAID that can be useful for quick RAID parameters evaluation for accuracy and trial RAID Access Plugin - RAID Builder module. The tool is available in main menu toolbar and allows to preview partitions located on the RAID as well as file system structure.

Correcting RAID configuration

To modify a RAID configuration, select the needed Virtual RAID storage it in the storages navigation tree of UFS Explorer and use the context menu option "Edit RAID configuration".

This will open RAID Builder with pre-configured RAID components and RAID parameters. When this RAID is built, it replaces the original RAID in the storages navigation tree.

The tool is useful for changing (or guessing) RAID parameters after incorrect specification.

Compatibility with Runtime Software RAID configurations

RAID configurations in the format of Runtime Software .vim files (Virtual Image files) are supported by the software and can be imported using using the "Image file or virtual disk " subitem of the "Open" item of the main menu.

Additionally, SysDev Laboratories implements several extensions to the .vim file format that can be not supported by Runtime Software products:

  • Full 64-bit support for all numeric parameters, including offsets and sizes.
  • Support of all disk image files and virtual disks (supported by UFS explorer) via .vim.
  • Support of .vim-files under Linux, macOS, BSD. This changes the format of the hard disk reference record and has format of "HD${path}", where ${path} is the full path to a block device (e.g. HD/dev/sda:).

User-defined RAID configurations

To apply a custom RAID configuration you should create a text file (ASCII or UTF-8/UTF-16 with a format marker) containing an instruction for the RAID configuration. RAID is configured via the "stripes" command which uses the "stripe size" and "pattern length" arguments. The command block describes the storage components in their order. The "comma" symbol delimits the components of the same row; the "semicolon" starts the description of the next row. An optional argument for the component defines the row "bias" of the component. The definition is not newline sensitive. It's allowed to add block comments /*...*/.

To load the created configuration files choose the "Custom data distribution algorithm" option from the drop-down list next to the RAID level parameter in the RAID properties sheet and press the "Change value" button next to the "Data distribution algorithm property" . After successful import of the configuration the software displays the dialog for configuration confirmation. If the configuration seems correct, press OK to accept it. After this press the "Build" button in the RAID Builder toolbar to accomplish RAID assembly and open it as a RAID storage in UFS Explorer.

Example: RAID5, Left Symmetric, 64KB stripe using 4 drives is defined as: stripes(128,4) {
1,2,3;
4,1,2;
3,4,1;
2,3,4;
}

Without newlines:

stripes(128,4) {1,2,3;4,1,2;3,4,1;2,3,4;}

Here "stripes(128,4)" — defines the configuration with the stripe size of 128 sectors and the pattern size of 4 stripes. Enumeration in {...}-block defines the ordinal number of components. Semicolon defines a new pattern row.

Using the bias argument you can write the same as: stripes(128,4) {1,2,3,4(1),1(1),2(1),3(2),4(2),1(3),2(4),3(4),4(4)}

Instead of a component you may also specify a functional expression. The supported expressions include "reconstruction by parity", "reconstruction by Reed-Solomon code" or "combined by parity and Reed-Solomon".

The formats of functional expressions: parity: P{1,2,3}. Here: P – parity function, enumeration – components used to calculate parity. Reed-Solomon: Q(5,g,4){1,2,3;1,2;3}. Here: Q – Reed-Solomon code, 5 – disk ordinal number, location of Q-stripe, g – index type, 4 – missing drive index; enumeration – disk numbers followed by disk indices (separated with semicolon) to calculate Reed-Solomon code.

a) Parity and Reed-Solomon: PQ(6,7,i,4,5) {1,2,3;1,2,3}. Here: PQ – combined calculation, 6 – P-stripe drive ordinal number, 7 – Q-stripe drive ordinal number, i – index type, 4 - disk index to reconstruct, 5 – disk index of the second missing drive; enumeration – disk numbers followed by disk indexes (separated with semicolon) to calculate Reed-Solomon code. Index type g – means two power of index in Galois field, i – just a simple index.
Samples of RAID configurations with reconstruction:
4 x RAID5, Left Symmetric, 64 KB stripe, without drive 3:
a) stripes(128,4) {
1,2,P{1,2,3};
3,1,2;
P{1,2,3},3,1;
2,P{1,2,3},3;
}
b) 5 x RAID6, Left Symmetric, 64KB stripe, without drive 3, redundancy order is P, then Q:
stripes(128,5) {
1,2,P{1,2,3,4};
4,1,2;
3,4,1;
P{1,3,4},3,4;
2,P{2,3,4},3;
}
c) 5 x RAID6, Left Symmetric, 64KB stripe, without drives 3 and 5, redundancy is P, then Q:
stripes(128,5) {
1,2,P{1,2,3,4};
Q(3,g,1){1,2;2,3},1,2;
3,P{1,2,3},1;
PQ{1,2,g,1,3}{3;2},3,PQ{1,2,g,3,1}{3;2};
2,Q(1,g,2){2,3;1,3},3;
}
If RAID has "parity delay", you may specify "loop" to entire column including functional expressions using the "repeat" function. For example, 4 x RAID5 Left Asymmetric, 16 KB stripe size and parity delay of 16 stripes:
stripes(32,64) {
repeat(16){1,2,3};
repeat(16){1,2,4};
repeat(16){1,3,4};
repeat(16){2,3,4};
}

Specifying disks

An optional "drives" section. If the section is not specified, RAID Builder will use the already defined components. If specified, the list of components from RDL will replace the list in RAID Builder. The supported types of components are: "disk" – a physical drive, "image" – a disk image file, "span" – a pre-defined span of components. A component is defined as a type (identification information, start offset, use size). The "start offset" and "use size" parameters are optional.

Example:

disk (1,2048,233432);

image(C:/image1.img,0,4096);

image(C:/image2.img);

span(myspan01,0,40960);

Physical drive identification information under Windows is the ordinal number of the drive; under macOS, Linux, etc. – the full path of the block device, for a disk image – the full path of this disk image, for span – its identification name.

Here is an example of full configuration for HP RAID with 4 x RAID5 Left Asymmetric, 16 KB stripe size and parity delay of 16 stripes:

drives {
disk(1,1088);
disk(2,1088);
disk(3,1088);
disk(4,1088);
}

stripes(32,64) {
repeat(16){1,2,3};
repeat(16){1,2,4};
repeat(16){1,3,4};
repeat(16){2,3,4};
}

If a configuration contains only the "drives" section, it simply loads the components into RAID Builder without defining any RAID configuration.

Defining SPAN

A span can be defined with the help of the "defspan" section. It must be defined before being used as a component. The syntax of the span definition is: defspan(name){enumeration}. Enumeration may include the same components as for the "drives" section (including spans).

Example:

defspan("myspan01") {

disk(1,2048,233432);

image("C:/image1.img",0,4096);

image("C:/image2.img");

span("myspan00",0,40960);

}

A simple span can be loaded via RDL using the following code:

defspan("images") {

image("C:/image1.img");

image("C:/image2.img");

image("C:/image3.img");

}

drives {

span("images");

}

stripes(1,1) {1}

UFS Explorer products are licensed, not sold. This means that the Software Legal Owner (SysDev Laboratories LLC) only grants you some rights for the software use. Please read the End User License Agreement for more information about software licensing.

The End User License Agreement is a Public Offer Agreement. Any use of the software (including copying, installation, exploitation, etc.) means you have accepted the Public Offer Agreement. From the moment of acceptance, the Agreement comes into legal force in most countries worldwide.

Only SysDev Laboratories LLC, the software Author and authorized resellers are authorized to issue Registration Codes for applications that are property of SysDev Laboratories LLC. Unauthorized use of a Registration Code is violation of the Ukrainian and international Copyright Laws.

Any publication of a Registration Code by a License Owner or unauthorized license transfer result in termination of the End User License Agreement.

The End User License Agreement is a Public Offer Contract that has legal force in Ukraine and other countries. By installing and using the software you accept this Public Offer. The violation of EULA can be considered as a crime in these countries.

4.2 Licensing information

UFS Explorer RAID Recovery is sold on the basis of the following licenses:

  1. Trial/Evaluation License – the Software can be used by a single person for evaluation purposes only. A License Owner shall agree to the "trial limitations" of the Software.
  2. Personal License – the Software can be used by a single individual for non-profit purposes. A License Owner is not authorized to provide any "for-profit" services using the Software.
  3. Corporate License – the License is applicable for software use by a legal entity, company or organization on up to 10 (ten) computers owned by a License Owner for non-profit purposes. A License Owner is not authorized to provide any "for-profit" services using the Software or use it at home for personal purposes. The Software cannot be installed on computers of third parties (e.g. customers of a License Owner).
  4. Commercial License – the License is applicable for software use by a legal entity, company or organization on one computer owned by a License Owner for commercial purposes. The Software cannot be installed on computers of third parties (e.g. customers of a License Owner).

The Personal, Corporate and Commercial licenses require the payment of the license fee. After the purchase of a Software License SysDev Laboratories authorizes it by issuing a Software Registration Code. This code is used to unlock the program functions (remove the "trial limitations") and identify a License Owner as an authorized owner of the Software.

A Personal License Registration Code is issued to Person's First and Last name; it authorizes the use of the application only by this Person.

A Corporate or Commercial License Registration Code is issued to either Company's name or Person's (entrepreneur) name and authorizes the Person/Company to use the application according to terms and conditions of EULA.

4.3 Contacts

Company details

Central Office:

Limited Liability Company SysDev Laboratories

Code of legal entity: 35951055

28-V Druzhby Narodiv Blvd,

Kyiv, 01103, Ukraine

E-mail: info@sysdevlabs.com

To contact our support team, please fill in the contact form.

5. Glossary

This section describes the main terms and notions needed for understanding the peculiarities of work with the software.

5.1 RAID

RAID (Redundant Array of Independent Disks) is a special technology for data storage organization in which several separate disks are combined to constitute a single system. In such a system, in contrast to traditional linear storages, the data is distributed across the drives in a way typical for a certain RAID level. Each level has its advantages and disadvantages, but the main idea of any RAID is a balance between maximum performance, increased reliability and full capacity of useful storage space.

An operating system detects RAID as a single drive giving it its own mount point and treating all its disks as one storage. A RAID controller is responsible for correct operation of the system, which can be either hardware- or software-based.

Most commonly used RAID levels include:

- JBOD, which is not exactly RAID, as it doesn't feature redundancy or increased fault-tolerance. Generally, this is Just a Bunch of Disks (not necessarily of the same size) combined to consequently store data as the disks are filled one after another. This technique is also called disk spanning.

- RAID 0 is based on data striping without redundancy. Each disk in the system is divided into separate segments – stripes. In the process of writing, the data is cut into pieces equal to the stripe size and takes the disk stripes simultaneously: while one data part is still being written, the system starts inputting the next one. In general, RAID0 is the fastest configuration in terms of input/output, but the least fault tolerant one. If any disk of such a system happens to fail, the data of the whole system becomes unreadable.

- RAID 1 applies the mirroring method. During the operation of writing, the system creates an exact copy of the data on another drive. If one disk fails, the other one remains readable. This method has the highest level of reliability and the most expansive disk capacity, though. Disks work in pair only: the system stops working completely without all drives being in operation. RAID1 is a perfect choice for situations when backing up data is of vital importance.

- RAID 3 is the first RAID level to employ parity. In combination with data striping like in RAID0, this system has a separate dedicated disk that stores parity for other disks. Due to its byte-level writing and a separate disk on which parity is calculated and written, RAID3 is not able to boast high speed. Such a scheme ensures system security, yet, at the expense of slow operation. For this reason, RAID3 is not very popular. In case of failure, data is retrieved with the help the intact disks and parity.

- RAID 4 uses the same model as RAID3 (i.e. striping with dedicated parity) with one difference: while RAID3 operates at a byte level, this one handles data at a sector level. As a result, this resolves the writing issue to some extent. Nevertheless, RAID5, a faster and more reliable configuration, has replaced RAID4. Like RAID3, this level is recovered with the help of the remaining disks plus the disk with parity.

- RAID 5 employs the principles of basic data striping similar to RAID0 and redundancy of RAID3, but is considered to be a more progressive technology than its predecessors. In RAID5 parity information is not stored on a separate disk but rather distributed among all data disks according to special rotation schemes. This method has speeded up writing, as the system doesn't have to wait until the parity is calculated on a separate disk. If any of the drives fails, the data will be retrieved from the remaining drives and with the help of parity.

- RAID 6 is a further step on the way to higher reliability. This method implies two layers of parity distributed across all disks according to special order and rotation schemes. Compared to other levels, RAID6 allows for data recovery in case of two missing drives. This scheme is the most reliable one but the least cost-efficient, as one additional drive is used for storing parity.

6. Appendix

In this section, the most common users' questions are answered. For any further information, please contact the developers of the software directly via the contact form.

Does the software modify data on the source drives?

Source drives are opened in the read-only mode so the software is unable to modify the data.

What file system type is applied on my storage?

If a file system is supported by UFS Explorer, it will be shown in the storages navigation tree as a partition with a certain name. For example, for "NTFS partition", "NTFS" is the file system type.

Does it support an X file system?

This information is available in the software specifications. Anyway, this can be checked by running the trial version of the software.

How can a partition be identified in UFS Explorer?

Find the drive and the file system of a specific size. Anyway, you may open the file system in Explorer and check it based on the files it contains.

Windows dynamic disk was not recognized by the software. Where is problem?

The software is likely to have defined a complex dynamic disk (e.g. span, stripe, RAID5, etc.). UFS Explorer does not assemble RAID automatically. If such a RAID is mounted by Windows as a volume, you may open it as a "storage device" by specifying its mount point (the NTFS path or drive letter followed by colon).

Data is stored on software or hardware RAID which is not recognized by the operating system. How can the the data be accessed?

UFS Explorer RAID Recovery supports virtual RAID reconstruction and uses such RAID as a virtual storage to access the data.

The disk image file is split into many fragments. How can the data be accessed?

The entire disk image can be combined from fragments using the span mode of RAID Builder.

There are bad clusters. How can the data be read?

If data is very valuable, it's better to contact a data recovery service laboratory for data recovery. If data costs less than the data recovery service fee, you may use the software to attempt data recovery.

If there are file system errors, it's recommended to use the file system reconstruction tools of UFS Explorer. Anyway, it is strongly recommended to access the data from such a drive only via the free "Read-It-Once plugin".

An external drive was not recognized, what should I do?

A: Check the data cable connection type and whether there is enough external power for the drive (e.g. 3.5' drives cannot be powered via USB). To make the software detect the drive, make sure the operating system can recognize the drive as a device.

In Windows: right click "Computer" choose "Manage". Go to "Storage" and "Disk management". Make sure disk is listed.

In Linux and macOS there is "Disk utility" in the system applications section that can be used for the same purposes.

Important: if you have connected a disk from another OS to the computer running Windows, it's may ask for "disk activation". Decline this prompt to prevent data loss.

The OS recognizes the disk but UFS Explorer doesn't. What should I do next?

Make sure the software is started using a local Administrator user account (this is required to access physical drives).

If other disks (except the required one) are detected, this may indi

7. Keyboard shortcuts

The following keyboard shortcuts work in the tab Hexadecimal contents.

Del
Remove selected
closes the selected component in RAID Builder.
Backspace
Previous location
moves the cursor backwards on the positions that were under the cursor location.
Shift
+Backspace
Next location
moves the cursor in the forward direction on the previously selected positions.
F5
Refresh
updates the information of the current data source, if modified
Ctrl+-
Unbind structure
breaks off the current structure template.
Ctrl+ =
Bind current structure
applies a structure from the list of imported structure templates at the current cursor position.
Ctrl+,
Split as "sparse" file
allows creating a new virtual disk using the space-saving "sparse file" technology.
Ctrl+.
Set end of file
cuts all the data after the cursor position and makes the cursor position the last byte.
Ctrl+/
Split to fragments
allows creating and saving several data chunks from the data source.
Ctrl+C
Copy raw
copies raw unformatted data.
Ctrl+D
Mark current position
opens a dialogue for saving user information about the position. The current position will be added to the positions list.
Ctrl+Down
Move component down
moves the component downwards in the components list.
Ctrl+Enter
Build this RAID
assembles the current RAID configuration in the UFS Explorer RAID Recovery program. The software opens the assembled virtual RAID storage in Hexadecimal Viewer for further operations.
Ctrl+F
Search tool
allows searching data with preset user-defined parameters. This includes search within text data field, search within hexadecimal data field and advanced hexadecimal data search, which gives more precise results.
Ctrl+G
Go to...
allows changing positions by setting position location parameters.
Ctrl+H
Copy hex text
copies the selected data from the hexadecimal pane.
Ctrl+I
Toggle inspector panel
hides the information panel. To expand the information panel, press the tool button once again.
Ctrl+K
Next difference
moves the cursor in the forward direction on the data difference positions detected by the software.
Ctrl+L
Follow link
interprets the highlighted hexadecimal values in little-endian order as an address for jumping to a new position. Data values can be set in a range from DWord (2 bytes) to Qword (8 bytes).
Ctrl+P
Copy position
copies the cursor position.
Ctrl+R
Select range
allows specifying data range for further operations including actions in the viewer and software tools.
Ctrl
+Shift+=
Bind a structure
allows applying structure templates to data at the current cursor position. To load a new structure from a text file select "Import" in the structure templates dialogue. Data structure details are displayed in the "Structure details" window and in the Information panel. Please, refer to Software forum for more information on how to create a structure template file.
Ctrl
+Shift+C
Copy text
copies the selected data from the text pane.
Ctrl
+Shift+G
Follow big-endian link
interprets highlighted hexadecimal values in the big-endian order as an address for jumping to a new position. Data values can be set in a range from DWord (2 bytes) to Qword (8 bytes).
Ctrl
+Shift+P
All positions
opens the list of all marked positions. In this dialogue, you can save the current positions list and load it in later references. To save new positions to the already existing list, create a new list file. If you open several list files, they are merged into one list. Go to button will address you to the selected position.
Ctrl
+Shift+S
Save as
copies the selected data from the hexadecimal pane.
Ctrl
+Shift+T
Previous position
allows moving backwards on positions from the list of marked positions.
Ctrl
+Shift+U
Copy UTF-8
copies the selected text data in one-byte UTF-8 encoding.
Ctrl
+Shift+V
Paste as
pastes the clipboard contents in a manner opted by the user.
Ctrl+T
Next position
allows moving forward on positions from the list of marked positions.
Ctrl+U
Copy Unicode
copies selected text data in two-byte Unicode encoding.
Ctrl+Up
Move component up
moves the component upwards in the components list.
Ctrl+X
Cut/Virtually cut selection
deletes the selected data area/ removes the selected data area from the data span.
